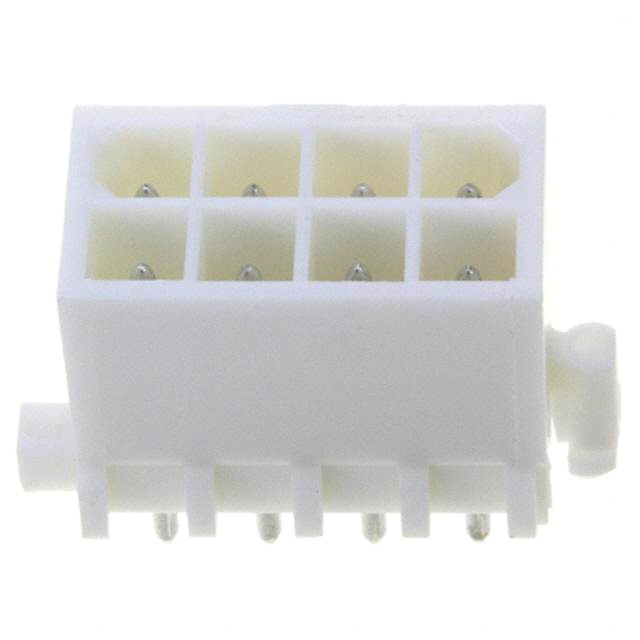

Con HEADER, 8POS, VERT, TIN, 1-794065-0, TE Connectivity
Categories | Connectors, Interconnects |
---|---|
Rectangular Connectors - Headers, Male Pins | |
Manufacturer | TE Connectivity AMP Connectors |
Series | Mini-Universal MATE-N-LOK |
Packaging | Bulk |
Part Status | Active |
Connector Type | Header |
Contact Type | Male Pin |
Pitch - Mating | 0.163" (4.14mm) |
Number of Positions | 8 |
Number of Rows | 2 |
Row Spacing - Mating | 0.163" (4.14mm) |
Number of Positions Loaded | All |
Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall |
Mounting Type | Through Hole |
Termination | Solder |
Fastening Type | Locking Ramp |
Contact Length - Mating | - |

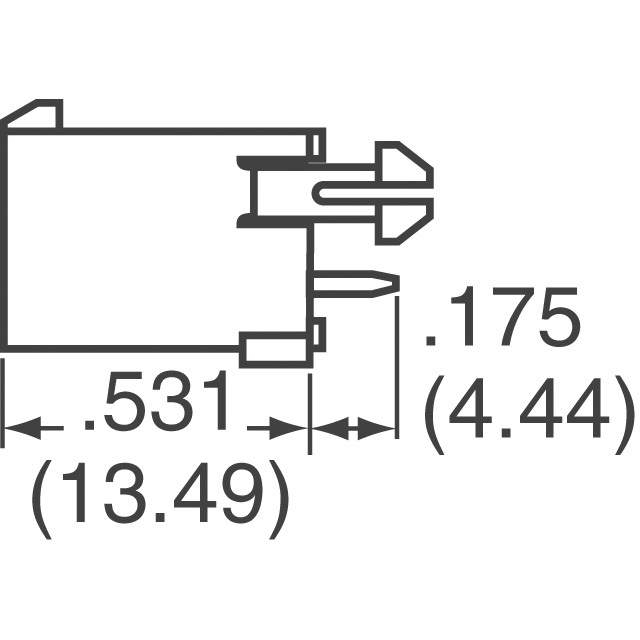

Contact Length - Post | 0.175" (4.45mm) |
Overall Contact Length | - |
Insulation Height | 0.531" (13.50mm) |
Contact Shape | Circular |
Contact Finish - Mating | Tin |
Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
Contact Finish - Post | Tin |
Contact Material | Brass |
Insulation Material | Polyamide (PA), Nylon |
Features | Board Lock |
Operating Temperature | -20°C ~ 85°C |
Ingress Protection | - |
Material Flammability Rating | UL94 V-0 |
Insulation Color | White |
Current Rating | Varies by Wire Gauge |
Voltage Rating | 600VAC |
Mated Stacking Heights | - |
Contact Finish Thickness - Post | 150.0µin (3.81µm) |
Applications | General Purpose |
Con HEADER, 8POS, VERT, TIN, 1-794065-0, TE Connectivity
