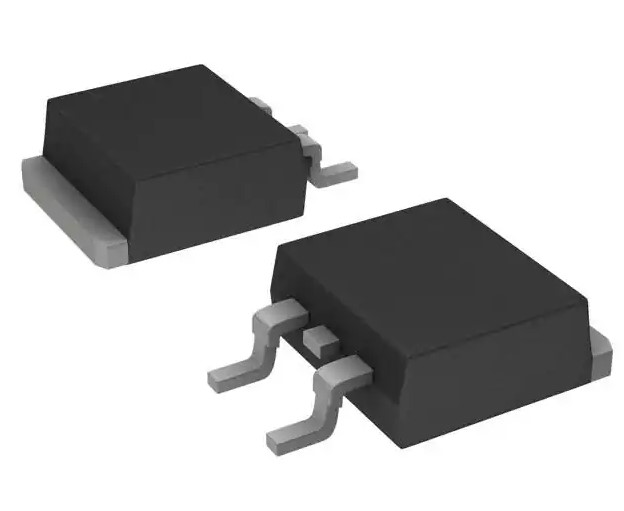

INTERNATIONAL RECTIFIER - IRF1010ES - MOSFET, N, 60V, 84A, D2-PAK
MOSFET, N, 60V, 84A, D2-PAK
Transistor Polarity: N Channel
Continuous Drain Current Id: 84A
Drain Source Voltage Vds: 60V
On Resistance Rds(on): 12mohm
Rds(on) Test Voltage Vgs: 10V
Threshold Voltage Vgs: 4V
Power Dissipation Pd: 170W
Transistor Case Style: TO-263
No. of Pins: 3
Operating Temperature Max: 175°C
Alternate Case Style: D2-PAK
Current Id Max: 84A
Junction to Case Thermal Resistance A: 0.9°C/W
On State resistance @ Vgs = 10V: 12mohm
Operating Temperature Min: -55°C
Operating Temperature Range: -55°C to +175°C
Pulse Current Idm: 330A
Voltage Vds: 60V
Voltage Vds Typ: 60V
Voltage Vgs Max: 4V
Voltage Vgs Rds on Measurement: 10V
Voltage Vgs th Max: 4V
