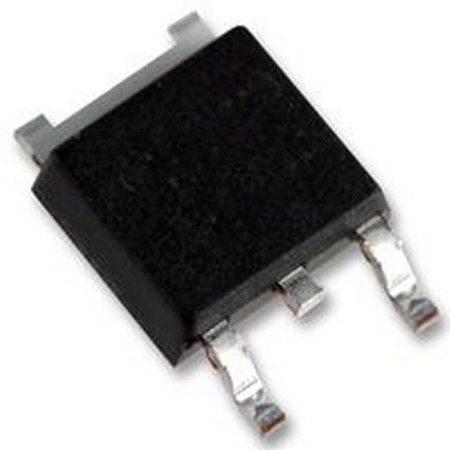

VISHAY FORMERLY I.R. - IRFR9014PBF - MOSFET, P, -60V, -5.1A, D-PAK
- MOSFET, P, -60V, -5.1A, D-PAK
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 5.1A
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 500mohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs Typ: -4V
- Power Dissipation Pd: 25W
- Operating Temperature Range: -55°C to +150°C
- Transistor Case Style: D-PAK
- No. of Pins: 3
- Alternate Case Style: D-PAK
- Current Id Max: -5.1A
- Current Temperature: 25°C
- External Depth: 10.5mm
- External Length / Height: 2.55mm
- External Width: 6.8mm
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 5°C/W
- No. of Transistors: 1
- Package / Case: DPAK
- Power Dissipation Pd: 25W
- Power Dissipation Pd: 25W
- Pulse Current Idm: 20A
- SMD Marking: IRFR9014
- Termination Type: SMD
- Voltage Vds Typ: -60V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: -10V
