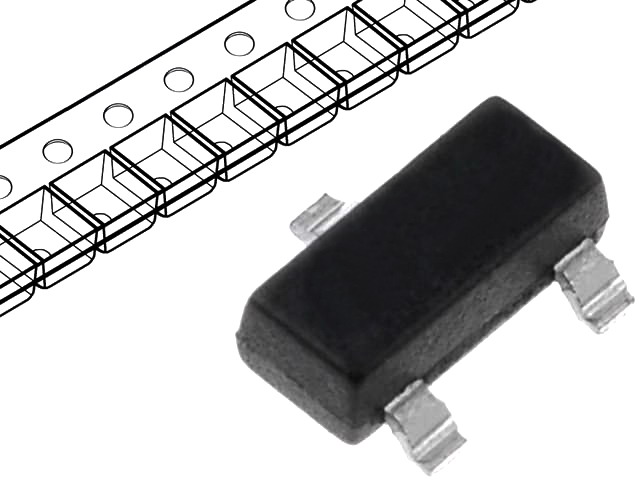

MMBF170LT1G Tranzistor N-MOSFET 60V 0.5A SOT23
Inlocuire pentru: MMBF170LT1
- MOSFET, N, SOT-23
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 500mA
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 5ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs Typ: 2.1V
- Power Dissipation Pd: 300mW
- Operating Temperature Range: -55°C to +150°C
- Transistor Case Style: SOT-23
- No. of Pins: 3
- SVHC: No SVHC (19-Dec-2012)
- Current Id Max: 500mA
- Current Temperature: 25°C
- Device Marking: MMBF170
- External Depth: 2.5mm
- External Length / Height: 1.12mm
- External Width: 3.05mm
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- Package / Case: SOT-23
- Power Dissipation Pd: 300mW
- Power Dissipation Pd: 300mW
- Pulse Current Idm: 800mA
- SMD Marking: MMBF170
- Tape Width: 8mm
- Voltage Vds Typ: 60V
- Voltage Vgs Max: 2.1V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 3V
