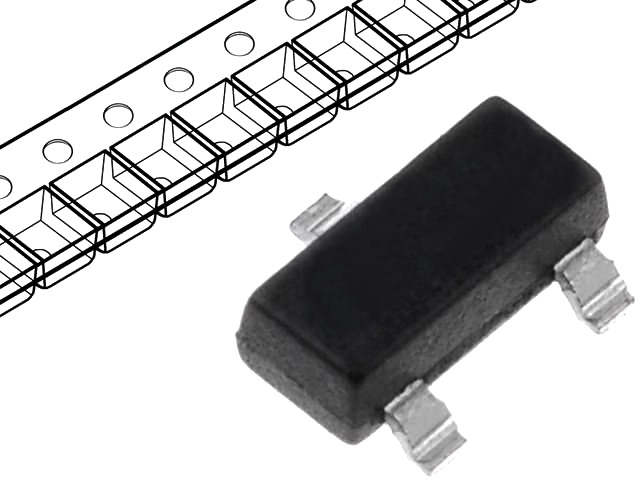

NDS355AN Tranzistor N-MOSFET 30V 1,7A 0,5W Rds=0,085 SOT23 RoHS
Producator: FAIRCHILD SEMICONDUCTOR
- MOSFET, N, SOT-23
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 1.7A
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 125mohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs Typ: 1.6V
- Power Dissipation Pd: 500mW
- Operating Temperature Range: -55°C to +150°C
- Transistor Case Style: SOT-23
- No. of Pins: 3
- SVHC: No SVHC (18-Jun-2012)
- Current Id Max: 1.7A
- Current Temperature: 25°C
- Device Marking: NDS355AN
- External Depth: 2.5mm
- External Length / Height: 1.12mm
- External Width: 3.05mm
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- Package / Case: SOT-23
- Power Dissipation Pd: 500mW
- Power Dissipation Pd: 500mW
- Pulse Current Idm: 10A
- SMD Marking: NDS355AN
- Tape Width: 8mm
- Voltage Vds Typ: 30V
- Voltage Vgs Max: 1.6V
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
