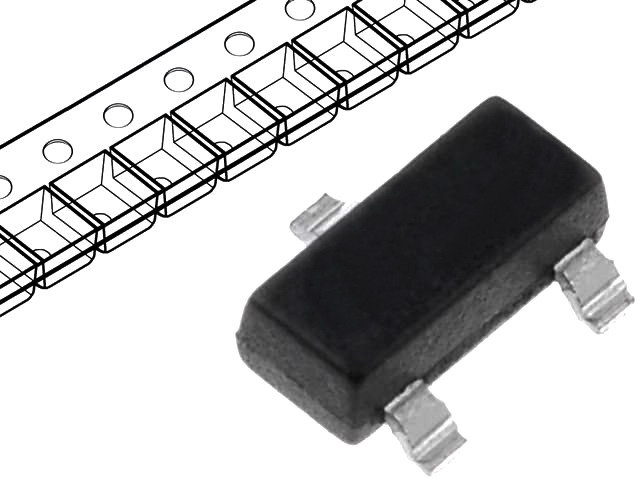

XP - PMV65XP,215 - MOSFET P-CH 20V 3.9A SOT-23
- MOSFET P-CH 20V 3.9A SOT-23
- Transistor Polarity: P Channel
- Continuous Drain Current Id: -2.8A
- Drain Source Voltage Vds: -20V
- On Resistance Rds(on): 76mohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs Typ: -750mV
- Power Dissipation Pd: 1.92W
- Operating Temperature Range: -55°C to +150°C
- Transistor Case Style: SOT-23
- No. of Pins: 3
- Current Id Max: -3.9A
- Package / Case: SOT-23
- Power Dissipation Pd: 1.92W
- Termination Type: SMD
- Transistor Type: Enhancement
- Voltage Vds Typ: -20V
- Voltage Vgs Max: -750mV
- Voltage Vgs Rds on Measurement: -4.5V
